SV 20 A
Seals trays
SV 20 A
A practical and sturdy automatic thermosealers
- Stainless steel structure
- Features a motor-driven Teflon-coated aluminium sealing plate guided on 4 points for uniform sealing along the entire surface.
- Adjustable sealing temperature and time.
- Electronic control with tray counting
- The tray can also be made to the customer’s specifications
- Fully extractable drawer with sensor for automatically activating the sealing cycle
- The machine can also be used to seal very tall trays used in delicatessens, etc.
- Automatic cutting of the film.
- Dies available in the standard version or made to the customer’s drawing
Options:
- Tray lidding film
- Standard trays
mm 137x95 h.63
mm 190x137 h.72
mm 230x190 h.65
mm 260x190 h.65
- Molds of the available trays
Product details
Model | SV 20 A 230/MN CE |
Power | watt 600 |
Power source | 1ph |
Max. film roll | mm 200 |
Tray max dimensions | mm 260x190 |

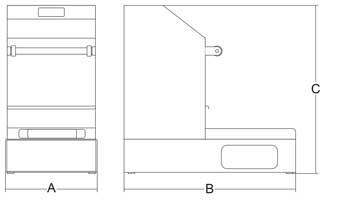

A | mm 260 |
B | mm 570 |
C | mm 510 |
Net weight | kg 29 |
HS-CODE | 84224000 |
