Vegetable-cutter
TV - TM MAXI
- TM-TG is a version of the well-known TM that thanks to a new larger feed hopper maximizes the motor power and strong structure.
- Same operational and electrical features of the TM .
- Toothed, high torque, belt.
- TM discs compatible, except PS discs .
- Aluminum-Stainless steel top with 360° loading feature.
- Microswitch on lever.
- Introducing tube without micro.
- Exclusive hopper design with no central chopping wedge.
- VERY EASY PRODUCT LOADING.
Optional
- Large number of discs available for every purpose.
Product details
| Model | TV-TM MAXI CE 230/50/1 |
| Power | watt 515 - Hp 0,7 |
| Power source | 1ph/3ph |
| Disc revolutions | rpm 300 |
| Feed hopper dimensions | mm h.150 x ø192 |

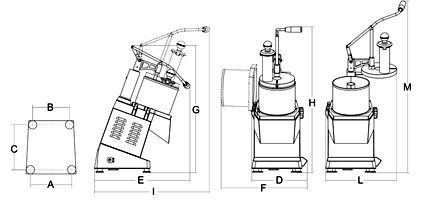

| A | mm 225 |
| B | mm 195 |
| C | mm 255 |
| D | mm 296 |
| E | mm 509 |
| F | mm 460 |
| G | mm 676 |
| H | mm 777 |
| I | mm 612 |
| L | mm 428 |
| M | mm 915 |
| Net weight | kg 20 |
| Shipping | mm 720x350x800 |
| Gross weight | kg 24 |
| HS-CODE | 84386000 |
