Meat processing
TC SM ICE
IoT machine manageable in the cloud with RCS platform
- Refrigerated laboratory meat mincer for maximum hygienic safety and for heavy duty
- Powerful 4 HP self-ventilated IP 55 motors for continuous use
- Machine body entirely made of AISI 304 stainless steel
- Oil bath reducer with ground gears and double oil seal protection system
- Practical head fixing with interlocked fixing lever (CE)
- High production grinding head sett completely in stainless steel
- Square introduction neck for high productivity even in the second pass
- Refrigeration on the neck, head and hopper
- Removable interlocked 21 liter hopper (CE) with neck up to the grinding area
- IP 67 stainless steel control buttons with reverse and interchangeable silicone protection
- Designed for quick and easy internal inspection
Optionals:
- Guard system for plates with hole> 8 mm
- Unger head 3 pcs or 5 pcs
- Format M hamburger attachment
- 150 Watt refrigeration system
- Giant 31 liter hopper
- Medium st steel legs with wheels and brake
- Removable stainless steel tray holder
- Sausage filler attachment
- SRCS wifi control board
Product details
| Model | TC 32 SM ICE 4 HP CE 400/50/3 |
| Power | watt 3.190 - Hp 4 |
| Power source | 3ph |
| Output/h. | kg/h. 700 |
| Standard plate | ø mm 4,5 |

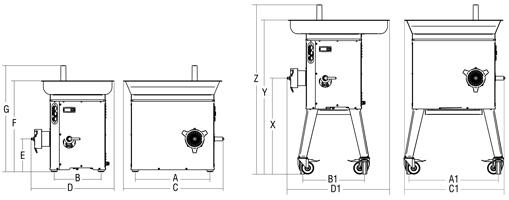

| A | mm 485 |
| B | mm 305 |
| C | mm 648 |
| D | mm 539 |
| E | mm 213 |
| F | mm 590 |
| G | mm 689 |
| A1 | mm 581 |
| B1 | mm 501 |
| C1 | mm 648 |
| D1 | mm 666 |
| X | mm 623 |
| Y | mm 1.000 |
| Z | mm 1099 |
| U | mm 76 |
| V | mm 76 |
| Net wetght | kg 62 |
| Shipping | mm 640x760x850 |
| Gross weight | kg 80 |
| HS-CODE | 84385000 |
